Freestyle 250
| TYPE | MFG | PART NAME | STATUS |
|---|---|---|---|
| frame | HSKRC | Freestyle 250 | — |
| rx | FrSky | R-XSR | — |
| camera | Caddx Ratel | Ratel | — |
| motor | DYS | Samguk Shu 2306 2500kv | — |
| aio | Racerstar | StarF4_6S | — |
| vtx | Team Black Sheep | TBS Unify Pro 5G8 HV Race | — |

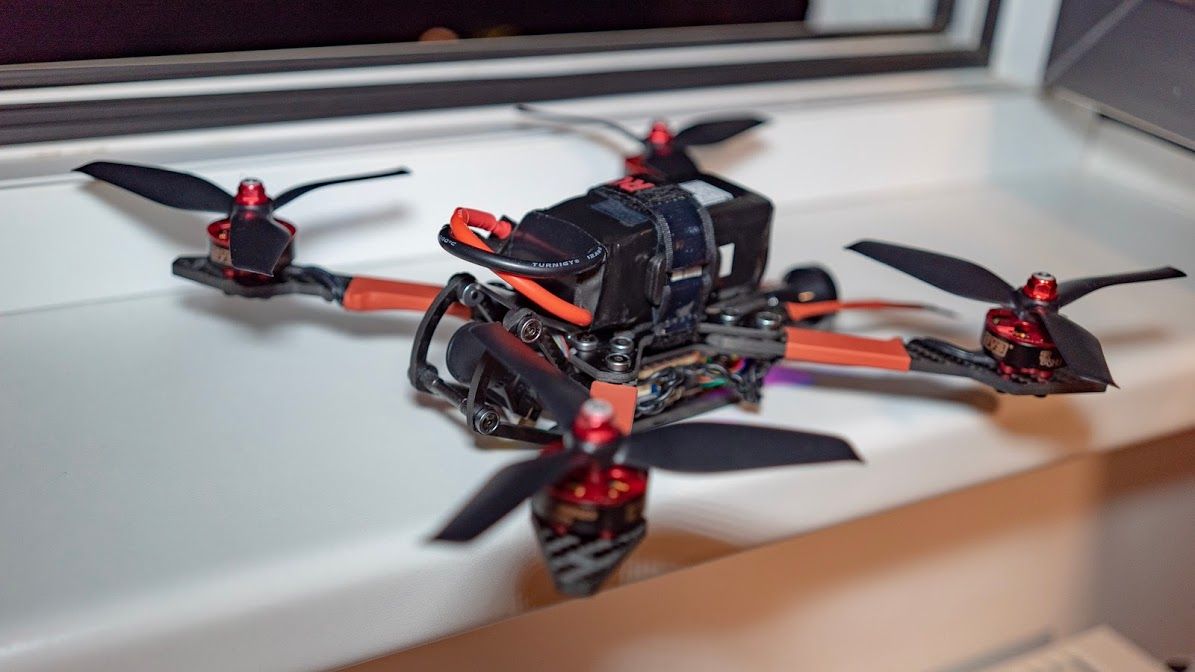

At some point I decided to build a 5" Kwad, as that seems the most common size, and after looking around I decided to get a HSKRC Freestyle 250 frame, which to some extend is a china clone of ummagawds Remix frame, however it comes with a few differences.
The first build on this was based on a Diatone Mamba Stack, but that broke in a crash which in itself was a result of a lose cable on the camera I originally used. I then rebuild it based on a FlightOne stack, but on the first attempt for an flight the tight space of the frame caused the electronics to touch the frame, resulting into a short, which burned the electronics.
I then decided to rebuild it in the current manner, with the AIO FC/ESC combination, which saves considerable space. I later on added various TPU 3d printed parts to protect the bottom in harder landings, and replaced the back-door with a PLA print, as the TPU parts wouldn't fit with the original carbon one
