Cygnet CX3 build
| TYPE | MFG | PART NAME | STATUS |
|---|---|---|---|
| motor | Amax | AMAXinno 1106 4600KV | — |
| rx | Team Black Sheep | Crossfire Nano RX | — |
| frame | Geprc | Cygnet CX3 | — |
| stack | Airbot | Omnibus F4 & Ori32 | — |
| camera | Caddx | Vista | — |
While building the Tyro79 I already had my eyes on a GEPRC Cygnus, but I really didn't want to buy a ready build one, so I picked some parts that seemed to make sense to me for building a small and lightweight kwad, and started having a go.
Now, I'm not totally happy with it, as I wish it had just a tiny bit more space on the inside, but this one is flying a lot nicer than my first project - probably due to the lighter weight, and better motors.
After getting my DJI HD Goggles I decided I needed a sub 250g drone that would carry a compatible system, hence I replaced the Caddx Turtle and the TBS Unify with a Caddx Vista System.. which made this build even better.

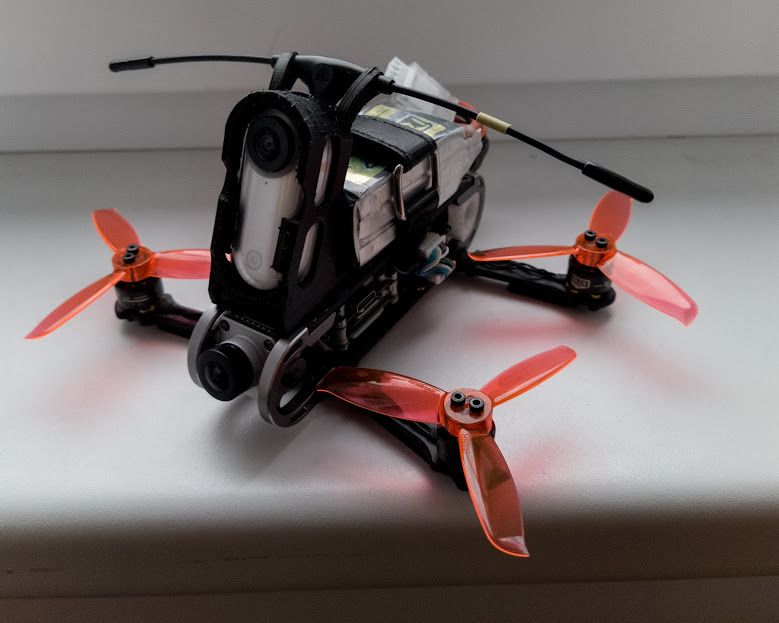

I then added an Insta360 Go to the setup for nice video recording while still staying sub 250g, but had a harsh crash at its first flight. After the crash I rebuild it replacing the previous XSR-M receiver with an R9 MM while improving the camera mount to also mount the antenna, while shaving off some weight.
Most recently I updated this with a Crossfire RX
